Optical Distribution Frames Wall Mount Patch Panel Easy Manage Nice Appearance YH1001

ODM and OEM China Factory Multi functional Fiber Optic Patch Panel with Flexible Size YH1001

Application area editing
In the integrated cabling system, the patch panel is suitable for horizontal cabling or equipment termination between equipment and inter-equipment termination for the centralized point. The sturdy and easy-to-install design reduces installation and operating costs, and the larger positive identification space facilitates port identification, ease of management, and compliance with the 19" rack mount standard.
It is an important auxiliary equipment in optical transmission system. It is mainly used for fiber optic terminal welding, optical connector installation, optical path connection, storage of excess pigtails and protection of optical cables. It is safe for optical fiber communication networks and Flexible use plays an important role.
Basic type editing

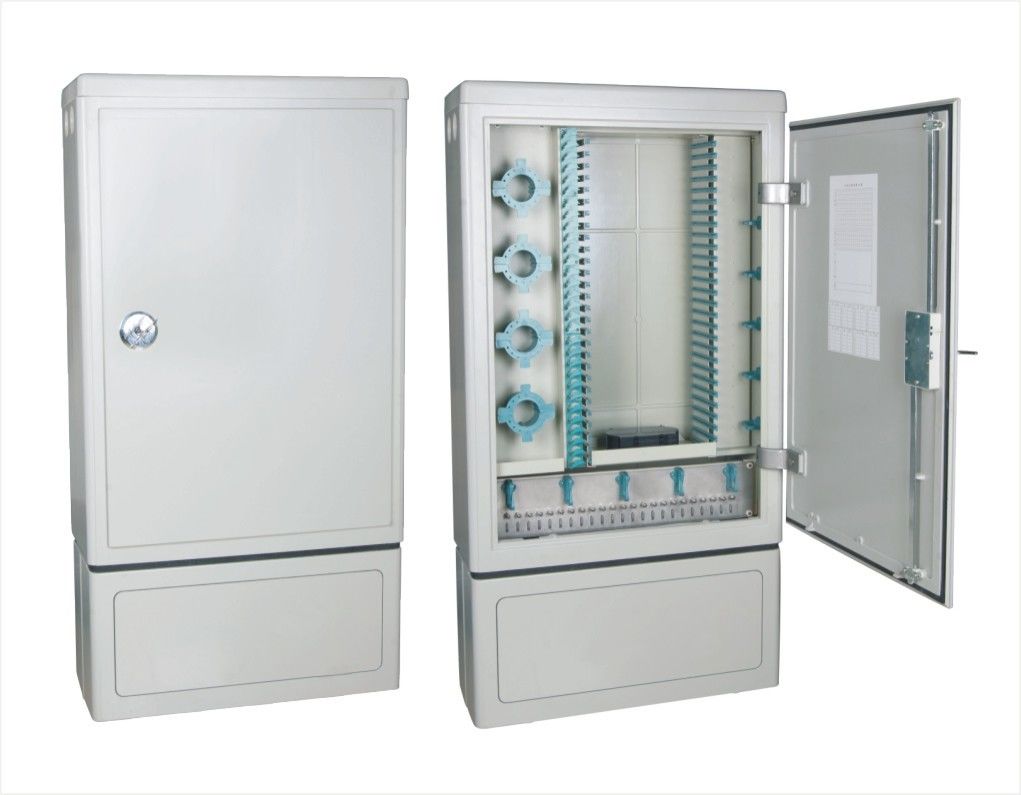

Optical fiber distribution frame can be divided into wall-mounted and rack-type according to the structure. The wall-mounted optical fiber distribution frame can be directly fixed on a wall body, generally a box structure, and is suitable for places where the number of optical fiber cables and the number of optical fiber cores are small. Rackmount fiber distribution frames can be installed directly in standard cabinets for larger scale fiber optic networks.

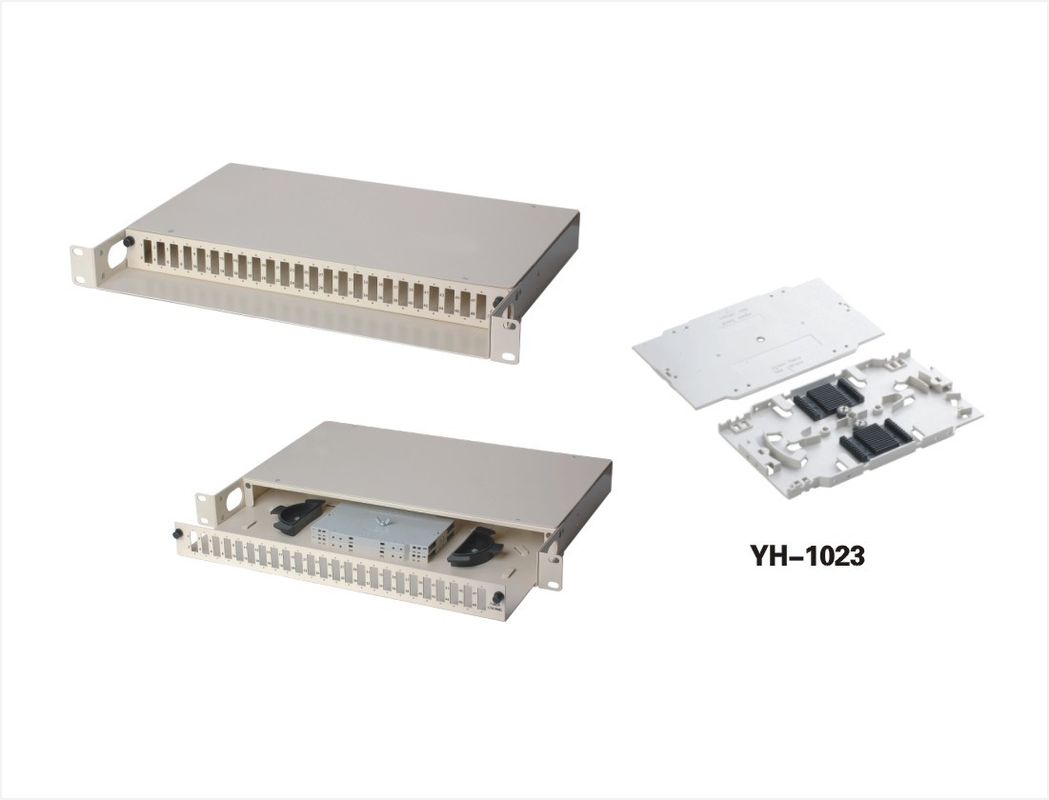

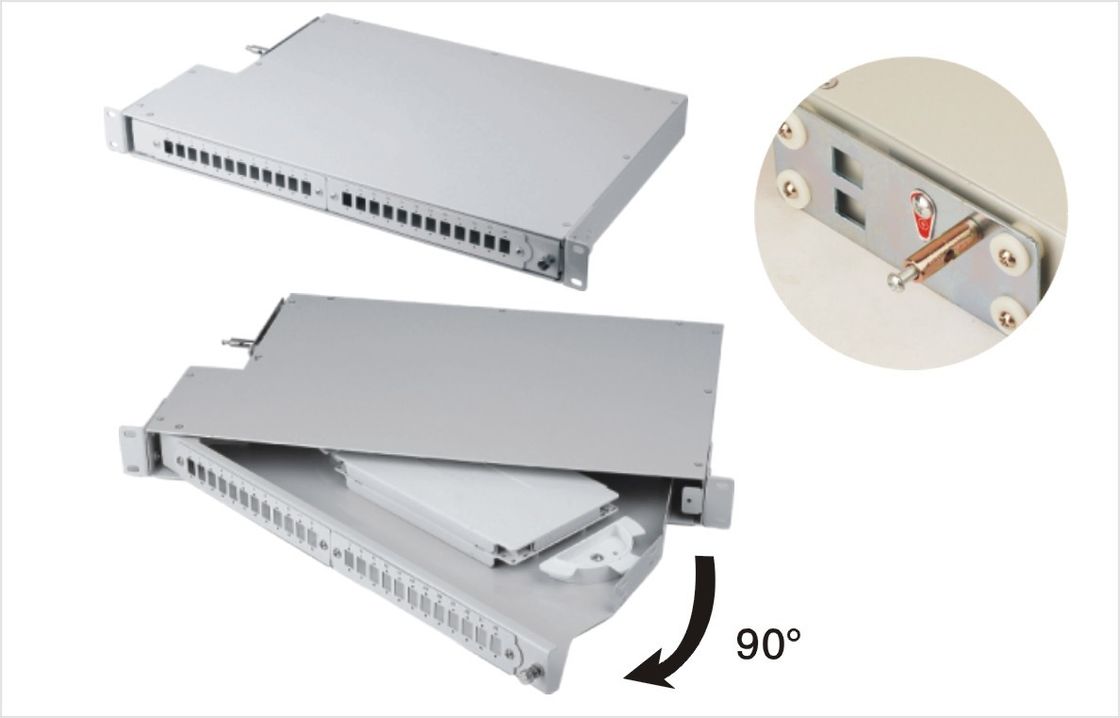

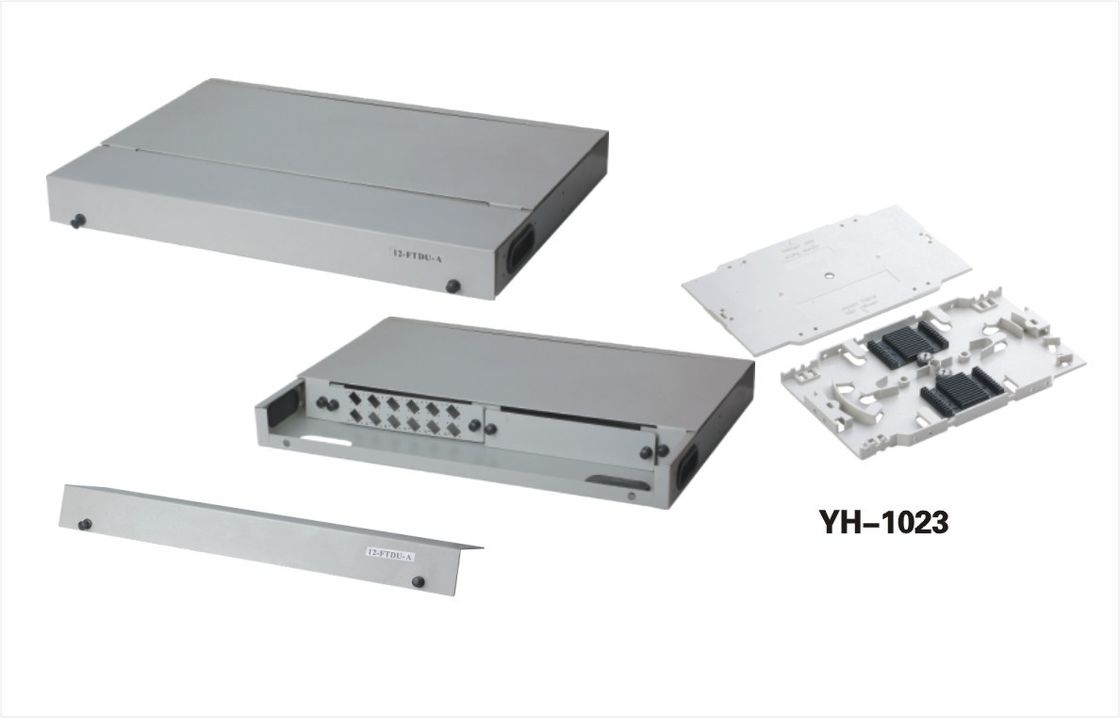

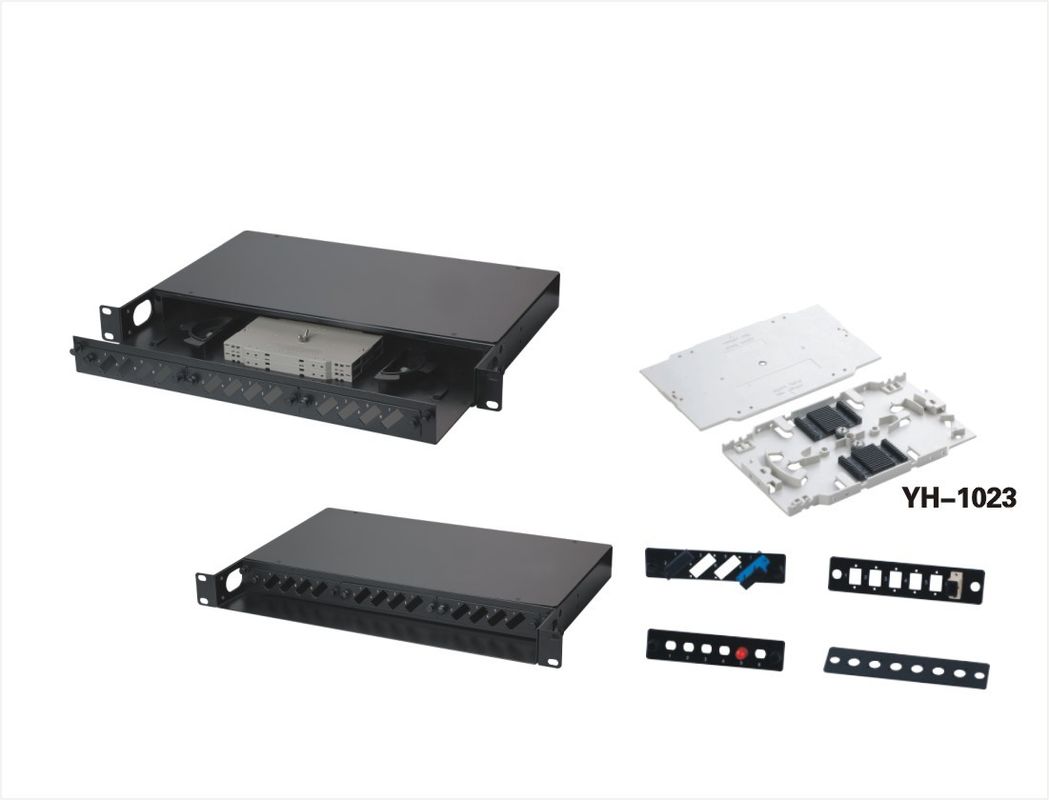

The rack type distribution frame is divided into two types, one is a fixed configuration patch panel, and the fiber coupler is directly fixed on the chassis; the other is a modular design, and the user can select the phase according to the quantity and specification of the optical fiber cable. The corresponding module facilitates network adjustment and expansion.
