Light Flexible Fiber Optic Patch Panel With Flame - Retardant Materials YH1009

Flexible SizeODM and OEM China Factory Multi functional Fiber Optic Patch Panel YH1009

Equipment Features Edit
Standard cell size

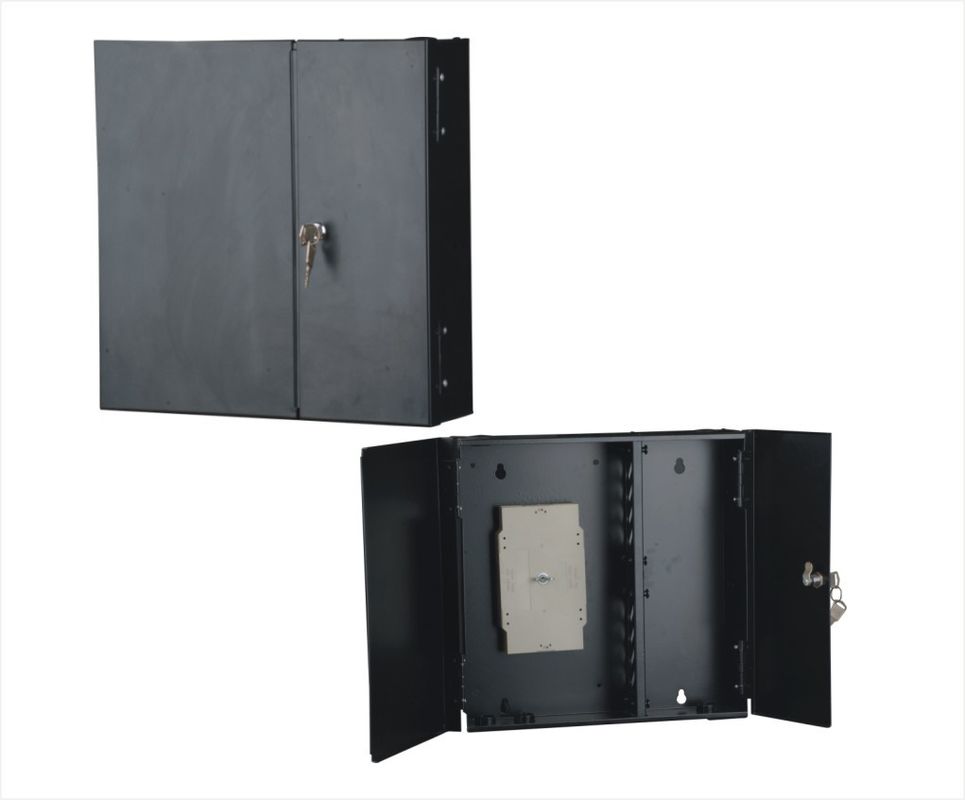

The 19-inch width can be loaded into the distribution rack cabinet or wall mounted.
Fine craftsmanship
The structural parts adopt thicker galvanized and passivated cold-rolled steel plates and the surface spraying process. The optical fiber distribution plate is made of plastic material doped with flame-retardant materials, which is light, flexible, and durable. The large-diameter coiled ring design keeps the radius of curvature of the pigtails and fiber jumpers above 40mm.
The optical fiber distribution frame can be separately assembled, and can also be integrated with a digital distribution unit and an audio distribution unit in a cabinet/frame to form an integrated distribution frame. With the introduction of fiber optic cable, fixed and protection functions, optical fiber terminal and tail fiber fusion, transfer function and fiber storage, fiber optic core and pigtail storage and protection functions.
Drawer structure

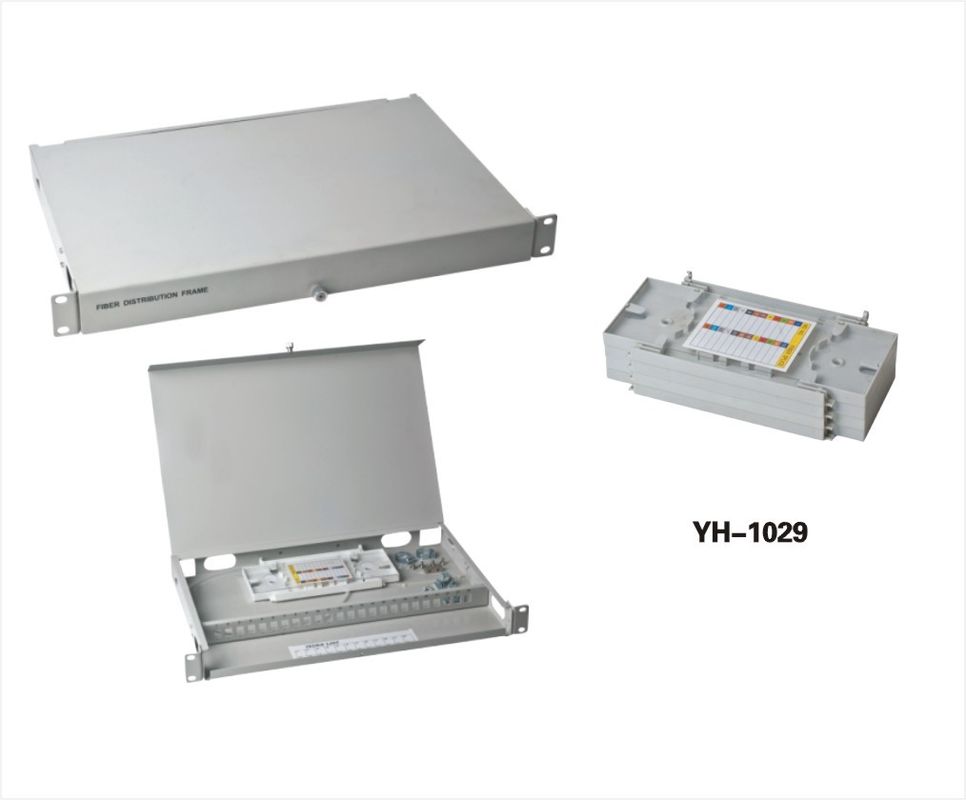

The inside of the wiring box adopts a drawer type structure, which can be taken out during operation and put back after completion.
Common specifications edit
1.12-port ODF unit
2. 24-port ODF unit
3.36-port ODF unit
4.48 ODF unit
5.72-port ODF unit
Optical fiber ODF distribution frame
The process of galvanized cold-rolled steel plate and surface coating is adopted. The optical fiber distribution plate is made of spray-shrink material of doped resistance olefin material, which is light and flexible, strong and durable. It has the functions of optical cable introduction, fixation and protection, and optical fiber terminal and pigtail welding function. The user can choose the unit quantity or the flange quantity according to the actual demand.
Specifications: Optical fiber ODF distribution frame 24 core / 48 core / 72 core / 96 core / 144 core
In fact, ODF panels should be categorized as terminal boxes rather than as patch panels.
