Place of Origin:
CHINA
Brand Name:
YUHUI
Certification:
ISO,RHOS,UL,CE
Model Number:
YH-5014
Quick Detail:

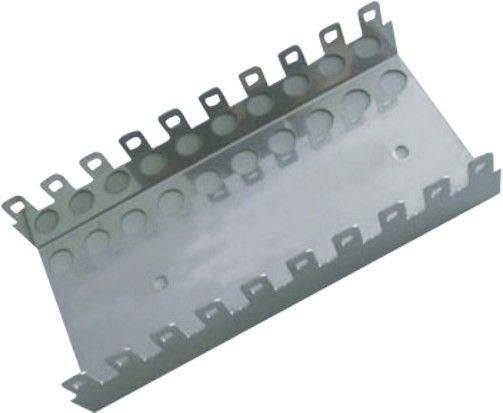

1. for 10pair krone modules.
2. Back mount type for distribution box,cabinet.
3. In 304 stainless steel or metal.
4. Height: 30mm / 50mm / 70mm to match up with different distribution boxes
5. With rubber ring for protecting the wire against the metal when pulling
6.The capacity as your requirepment for 10pair to 200pair
Description:
Material: 304 Stainless Steel
Height: 30mm / 50mm / 70mm
Distribution frame for krone LSA 10pair disconnection module and connection module,easy to assemble with screw.
The distribution block is a part of connection systems. It includes 8/10 pair connection/disconnection krone module, switching, high band modules, quick connect module, 25pair splicing module, 10pair STG module, MDF, STB module,Subscriber terminal block, back-mount frames, protection systems and other related accessories.
Small capacity for copper wire connection.It is convenient for the application mounting to walls,wood,metal or poles, for networking building.It is offered under standard TIA/EIA568A/B,CE,RoHS,and ISO certificated .A widely used waterproof distribution box for outdoor application .There is earth wire inside for protection.
It offers easy access for terminations,there is standard back mount frames for mounting the krone profile module blocks.Simple hand tools and minimum skills required for installation.The cover can stand with 90 degrees in open position for easy access during installation .No wire stripping required. The rubber grommets at all drop wire entry and exit ports for protecting the wire from damage and also protecting the modules from water,duct,insects.
Applications:
Use on the distribution boxes,cabinets.
Specifications :
|
Distribution frame for krone LSA 10pair profile disconnection module and connection module,easy to assemble with screw.
|
|
| Item No | Description |
| MT-5015 | mounting frame for 2/10 krone module 90pair,100pair,150pair,180pair |
| MT-60901125-00 | 19inch mounting bracket for profile module jack |
| MT-64201050-00 | 690pair MDF,1 line,standing type 1850*300*150mm |
| MT-64201013-00 | 1200pair MDF,2 line,standing type 1800*560*150mm |
| MT-3028 | 1380pair MDF,wall mount type 1850*550*80mm |
| MT-3029 | 1200*2 pair distribution rack,standing type,double side 600*600*2000mm |
| MT-69711023-00 | 600*2 pair distribution rack,standing type,double side 675*450*2150mm |
