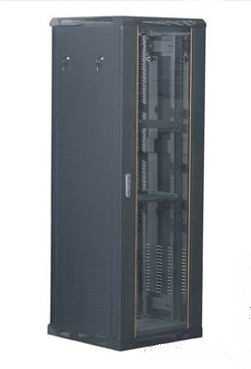

Monitoring Room Full Height Data Server Cabinet Floor Mounted Data Cabinet YH2013

Flexible size Heat ventilation Network Rack Cabinet Electromagnetic isolation YH2013

Cabinet main body

The cabinet body that meets the requirements of the modern core room design usually has the following features.

(1) Ventilation area of ​​the front and rear doors is not less than 5355cm2, meeting the ventilation requirements stipulated by the major server manufacturers.

Meet the requirements of the ventilation area of ​​the cabinet front door

(2) The vertical column can be easily adjusted to meet the requirements of different installation depths.

(3) All devices that comply with the EIA-310-D standard can be correctly installed.

(4) The integrated rear cable management dedicated channel allows users to easily lay, manage, and operate a large number of data cables, even when rack equipment is installed in the cabinet or installed in a cabinet. Easy to complete.

(5) Through the rear power distribution channel, users can easily install multiple types of vertically installed power distribution units (PDUs) without occupying valuable cabinet installation space. Dedicated power distribution channels for convenient power distribution

A larger number of power outlets are provided for cabinet-mounted devices, and no less than 21 IEC power outlets can be provided in the power distribution channel on one side of the cabinet.

(6) The power cables and data cables can be either from the cable tray at the top of the cabinet or from the lower space of the raised floor. Therefore, the top of the cabinet and the bottom of the cabinet need to provide sufficient cables to enter the access port. In some environments, the power cables or data cables may need to be laid out from one cabinet installed side by side to the other cabinet next to each other. Lateral cable channel ports need to be provided on the cabling channels at the rear of the cabinet to meet this requirement. need.

(7) The vertical installation column of the cabinet indicates the exact position of each "U", which eliminates the trouble of the user repeatedly searching for the installation position and greatly facilitates the user's installation work.

(8) The front door, rear door and side panels can be locked and can only be opened with the provided key.

(9) Proven frame design, sturdy standard mounting bars and heavy duty casters provide static and dynamic load ratings of not less than 900kg.

(10) Multiple grounding bolts are provided to provide adequate grounding points for the equipment installed in the cabinet and all independent metal parts.

(11) Front, rear door and side panel designs that can be quickly removed. During equipment installation and routine maintenance, removing cabinet doors or side panels
