Place of Origin:
CHINA
Brand Name:
YUHUI
Certification:
ISO9001
Model Number:

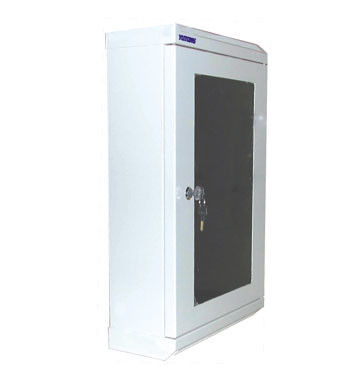

Heat ventilation Electromagnetic Network Rack Cabinet isolation Flexible sizeYH12
19-inch standard cabinet size table
The first thing you need to know is
(1) U is a unit that represents the external size of the server and is an abbreviation for unit, 1U = 1.75 inches = 44.45 mm
(2) There are 3 holes between 1U, the center hole is center, the distance between the two far holes is 31.75, and the distance between the two mounting columns is 465
(3) The specified size is the width of the server (48.26 cm = 19 inches) and height (in multiples of 4.445 cm). Since the width is 19 inches, the rack that satisfies this requirement is also called a "19-inch rack." The thickness is based on 4.445cm and 1U is 4.445cm. The details are as follows:
19-inch cabinet rack size table
Name Type Length*Width*Deep(mm) Remarks
Standard cabinet 18U 1000*600*600
24U 1200*600*600
27U 1400*600*600
32U 1600*600*600
37U 1800*600*600
42U 2000*600*600
Server cabinet 42U 2000*800*800
37U 1800*800*800
24U 1200*600*800
27U 1400*600*800
32U 1600*600*800
37U 1800*600*800
42U 2000*600*800
Wall-mounted cabinet 6U 350*600*450
9U 500*600*450
12U 650*600*450
15U 800*600*450
18U 1000*600*450
