Place of Origin:
CHINA
Brand Name:
YUHUI
Certification:
ISO9001
Model Number:

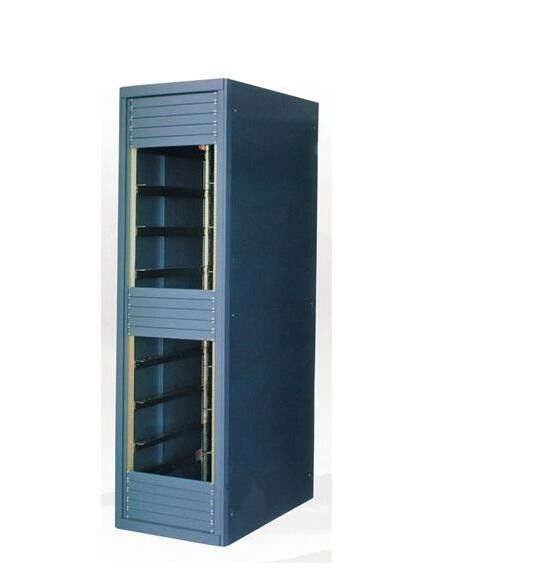

Flexible Size Water Proof Electromagnetic Communication Rack Cabinet YH07
cable identification
According to the preparation of the related information of each cable connection in the system in the wiring diagram, the total wiring workload can be known through this table, and all required wire numbers can be pre-wired through the wire number column in the table. Print out, to avoid the trouble to find the line number before and after holding the entire set of drawings.
After the components in the cabinet are installed, the correct labeling should be performed immediately according to the material table and schematic diagram.
The label is attached to the base plate and the component body near the component, and the position is obviously easy to find. The main model of the component is not covered as far as possible, and it is not close to the operation position of the personnel.
All the terminal parts are equipped with a white wire number pipe supporting the pipe diameter. The number is printed on the wire number pipe according to the drawing requirements. The number imprints outward and prevents it from falling off. The line number of the line number is printed from left to right and from top to bottom.
The cabinet must be equipped with a screen eyebrow to record the use of the equipment in the cabinet.
